Shaft Design Caculations

Features Shaft Design Caculations

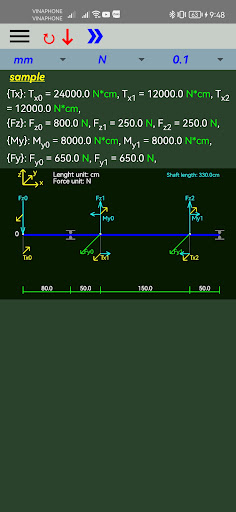

This application is designed to help you draw torque diagrams, bending moment diagrams when designing shafts.Loads include:Torque;Bending moment in the longitudinal plane;Bending moment in the horizontal planeThe force is concentrated in the sagittal plane;The force is concentrated in the horizontal plane;This application does not take into account axial forces.Sometimes there is a slight error, which is caused by infinitely recurring decimal rounding.
